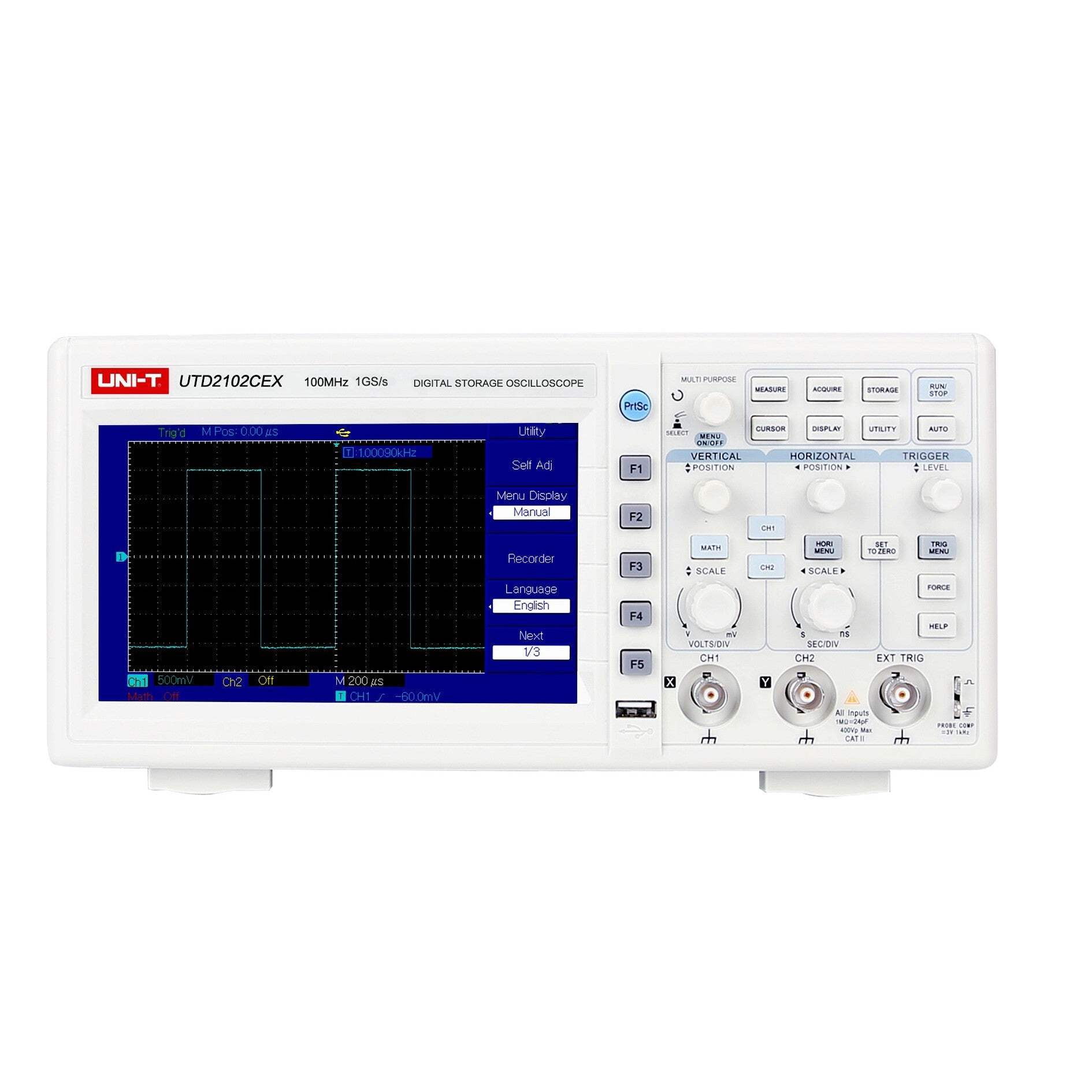

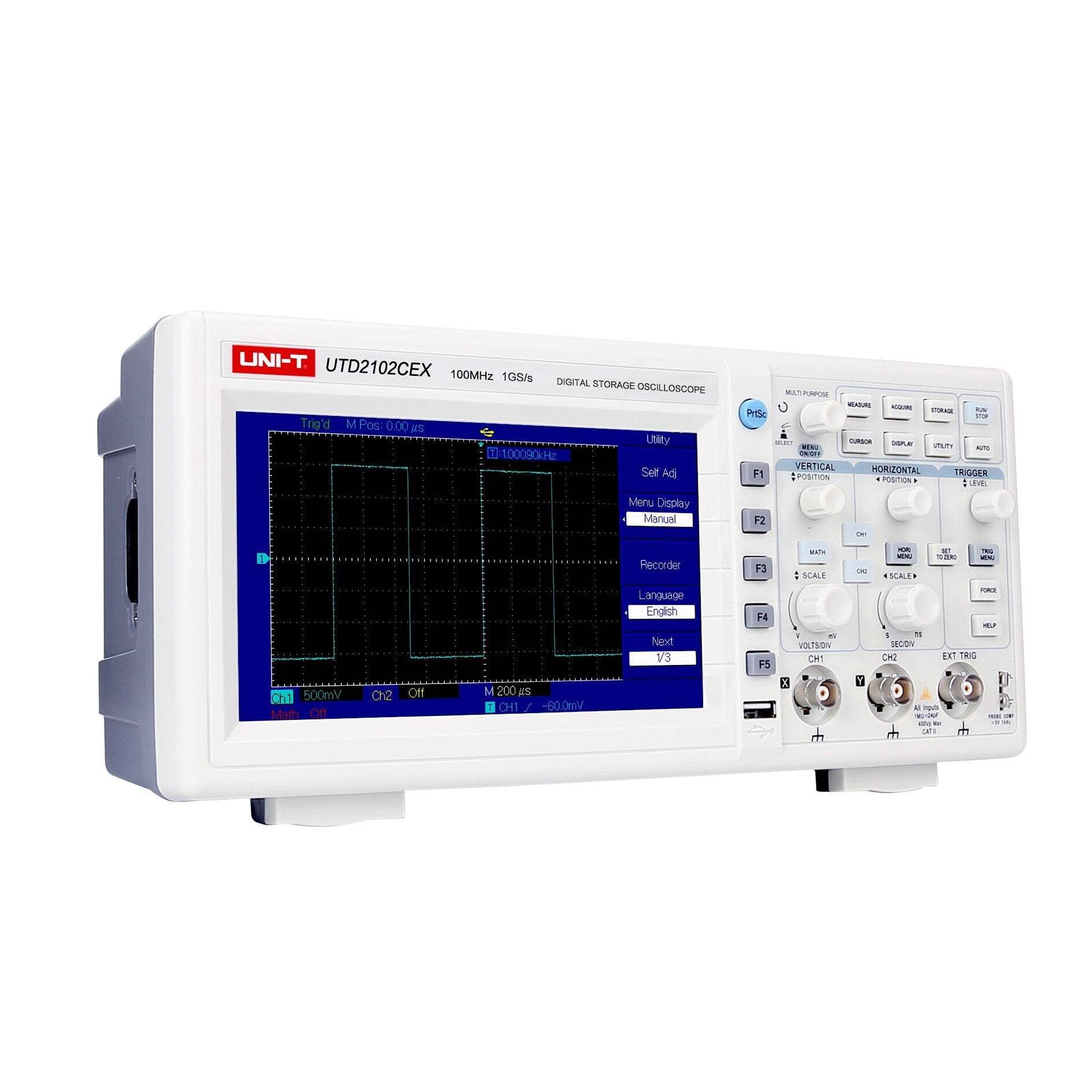

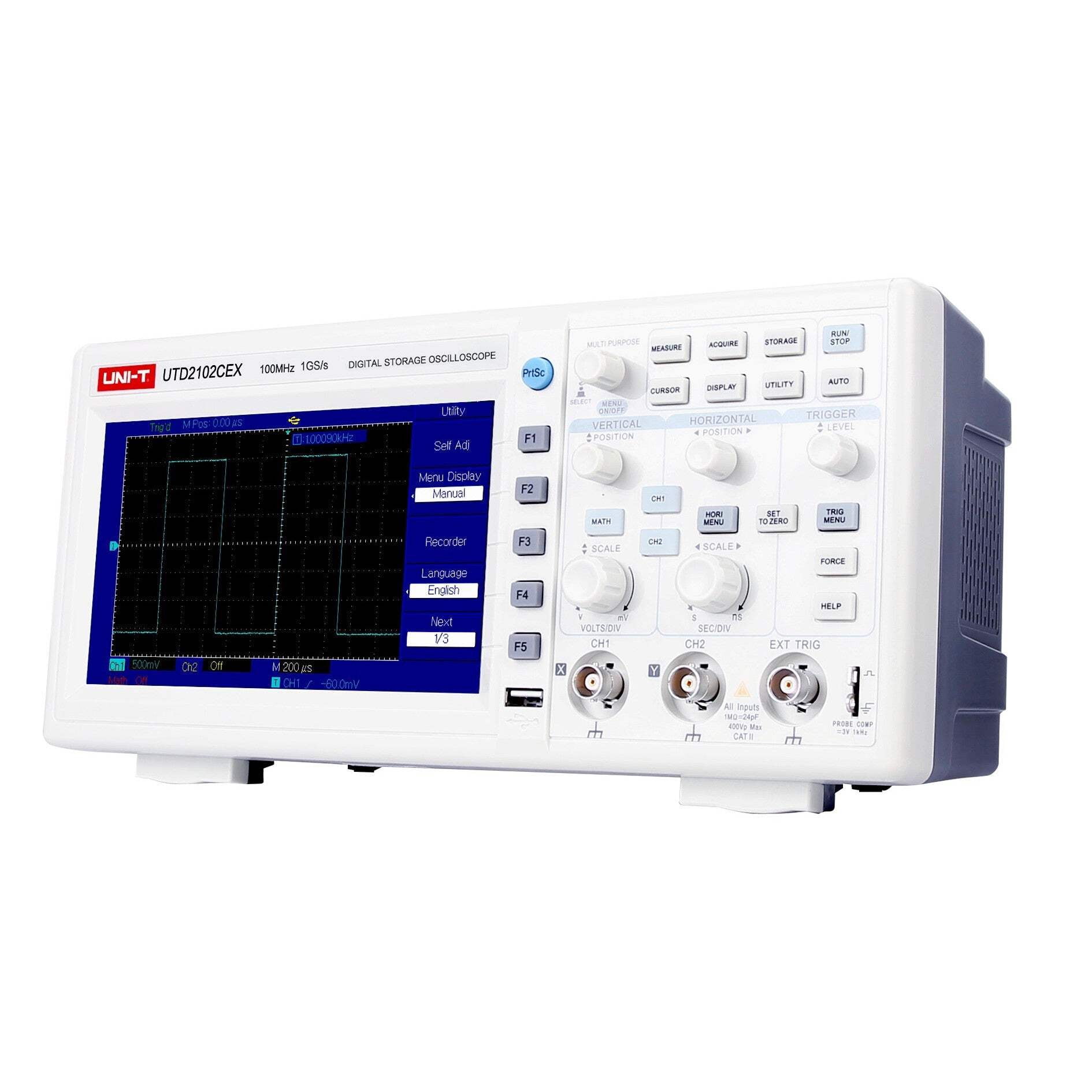

UNI-T UTD2102CEX+ 100MHz 2Ch DSO Digital Storage Oscilloscope

<strong>Welcome to the UNI-T UTD2102CEX+ Digital Storage Oscilloscope (DSO)</strong>UNI-T UTD2102CEX+ Multi feature<p>For electrical engineers and electrical engineering professors who demand precision and versatility in waveform analysis, we present the UNI-T UTD2102CEX+ Digital Storage Oscilloscope (DSO). This advanced instrument is designed to meet your exacting standards, offering a wealth of features and capabilities that will take your waveform analysis tasks to the next level.</p>Key Specifications<ul><li><strong>Bandwidth:</strong> 100MHz</li><li><strong>Analog Channels:</strong> 2</li><li><strong>Real-Time Sample Rate:</strong> 1GSa/s</li><li><strong>Max. Memory Depth:</strong> 64kpts</li><li><strong>Waveform Capture Rate:</strong> 5,000wfms/s</li></ul><strong>Unleash the Power of Mathematics:</strong><p>The UNI-T UTD2102CEX+ empowers you with a suite of mathematical functions that simplify complex waveform analysis. Perform addition, subtraction, multiplication, division, and waveform calculations effortlessly. Visualize the results of CH1 &amp; CH2 waveform mathematical operations (+, –, ×, ÷) with precision and ease.</p><strong>Zoom In for Detailed Insights:</strong>UNI-T UTD2102CEX+ Functions feature<p>Experience the ability to scrutinize waveforms in both their entirety and fine detail. The 7-inch screen of the UNI-T UTD2102CEX+ Digital Storage Oscilloscope (DSO) is divided into two sections, offering an original waveform view on the top and a zoomed-in waveform display below. Manipulate the cursors on either side of the original waveform to focus on specific details with remarkable clarity.</p><strong>Explore XY Mode (Lissajous Graphics):</strong><p>Quickly measure phase differences between two signals of the same frequency in XY Mode with the UNI-T UTD2102CEX+ Digital Storage Oscilloscope (DSO). CH1 voltage is represented on the horizontal axis, while CH2 voltage is displayed on the vertical axis, enabling precise assessment of phase relationships in your signals.</p><strong>Effortless AUTO Mode:</strong><p>Achieve optimal waveform display with the press of the AUTO button. The UNI-T UTD2102CEX+ automatically adjusts vertical scale, horizontal time base, and trigger mode based on your input signals, ensuring the best waveform visibility. Customize the auto setting parameters to align with your specific requirements.</p><strong>Unlock the Power of FFT Spectral Analysis:</strong><p>In FFT mode, the UNI-T UTD2102CEX+ Digital Storage Oscilloscope (DSO) seamlessly transitions from time domain (YT) to frequency domain signals. This capability is invaluable for various applications, including measuring harmonic content and distortion, displaying noise characteristics in DC power supplies, and analyzing vibration signals.</p><strong>Automatic Parameter Measurement Made Easy:</strong>UNI-T UTD2102CEX+ Range feature<p>Simplify your analysis tasks with the UNI-T UTD2102CEX+, offering 34 automatic parameter measurements and 5 customizable parameter display groups. Measure parameters such as Min/Max, Peak-to-Peak, Mean, Cycle Mean, RMS, Rise/Fall Time, Frequency, and more. These measurements can be based on CH1, CH2, or mathematical functions, providing unparalleled flexibility.</p><strong>Fine-Tune Your Triggers:</strong><p>Customize your signal capture precisely to your requirements with a range of trigger options. The UNI-T UTD2102CEX+ offers Edge Trigger, Pulse Width Trigger, Video Trigger, Slope Trigger, and Alternating Trigger, each with a plethora of settings for capturing signals with utmost precision.</p><strong>Experience the Future of Waveform Analysis:</strong><p>The UNI-T UTD2102CEX+ Digital Storage Oscilloscope (DSO) empowers electrical engineers and professors with the tools they need for accurate and insightful waveform analysis. Elevate your work and acquire the UNI-T UTD2102CEX+ today to unlock a new level of precision in your electrical engineering endeavors. Your next breakthrough is right</p>

• Standard 2 channels, with multiple national languages The UTD2000CEX series is equipped with 2 channels as standard, and has multiple national languages, which is convenient for operation and use in more regions and countries.
• 20,000wfms/s waveform capture rate and Waveform recording The UTD2000CEX-II Series maximum of 8000 frames can be recorded, and a better waveform analysis effect can be achieved through the playback and save functions. and Up to 20,000wfms/s waveform capture rate.
• UTD2102CEX-II 100 MHz 2 1 GSa/s 25 kpts 20,000 wfms/s
